| Uint of measurement 单位 |
PNF9.8 | |
| Model 型号 | F9.8MHS/F9.8MHL | |
| Moto type（气缸数目） | 2 Cylinder | |
| Displacement（排量） | cc | 212cc |
| Bore*Stroke （缸径*冲程） |
mm | 56*43 |
| Full Throttle Speed Range （全马力速度） |
rpm | 5000-6000 |
| Max.Prop Shaft Output （最大输出功率） |
KW(HP)r/min | 9.9HP@5500rpm |
| Fuel/Induction System （燃油/进气系统） |
SOHC | |
| intake ( 进气 ) | Carburetor | |
| Exhaust （ 排气 ） | Through Propeller | |
| Cooling（冷却） | water | |
| ignition system ( 点火系统 ) |
CDI | |
| Alternator Output （交流电输出） |
12V/6A | |
| Starter（启动） | Manual | |
| Engine Oil Capacity (发动机机油容量） |
L(liter) | |
| Gear Ratio（传动比） | 2.08 | |
| Gear Shift （换挡位置） |
F-N-R | |
| Transom Height（挂机梁高） | mm/in | S=17″ L=22″ |
| Dry Weight （净重） | KG | 44 |
| Gross Weight（毛重） | KG | 55 |
| Steering angel | ||
| Packing Size (包装尺寸） |
cm | 109*60.5*44.5 |
4 Stroke, Gas Outboard Motor, Outboard Motors
PNF9.8

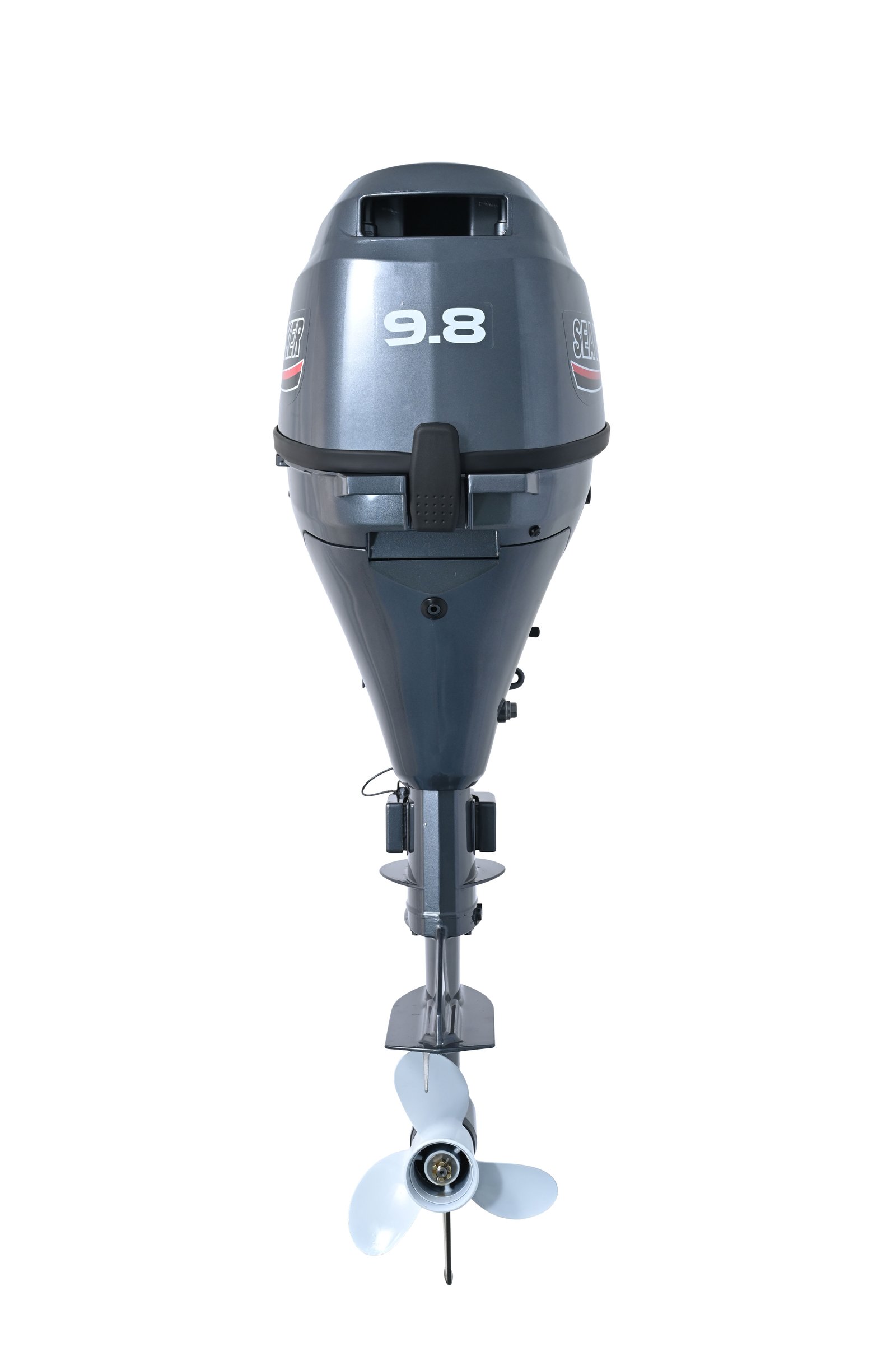

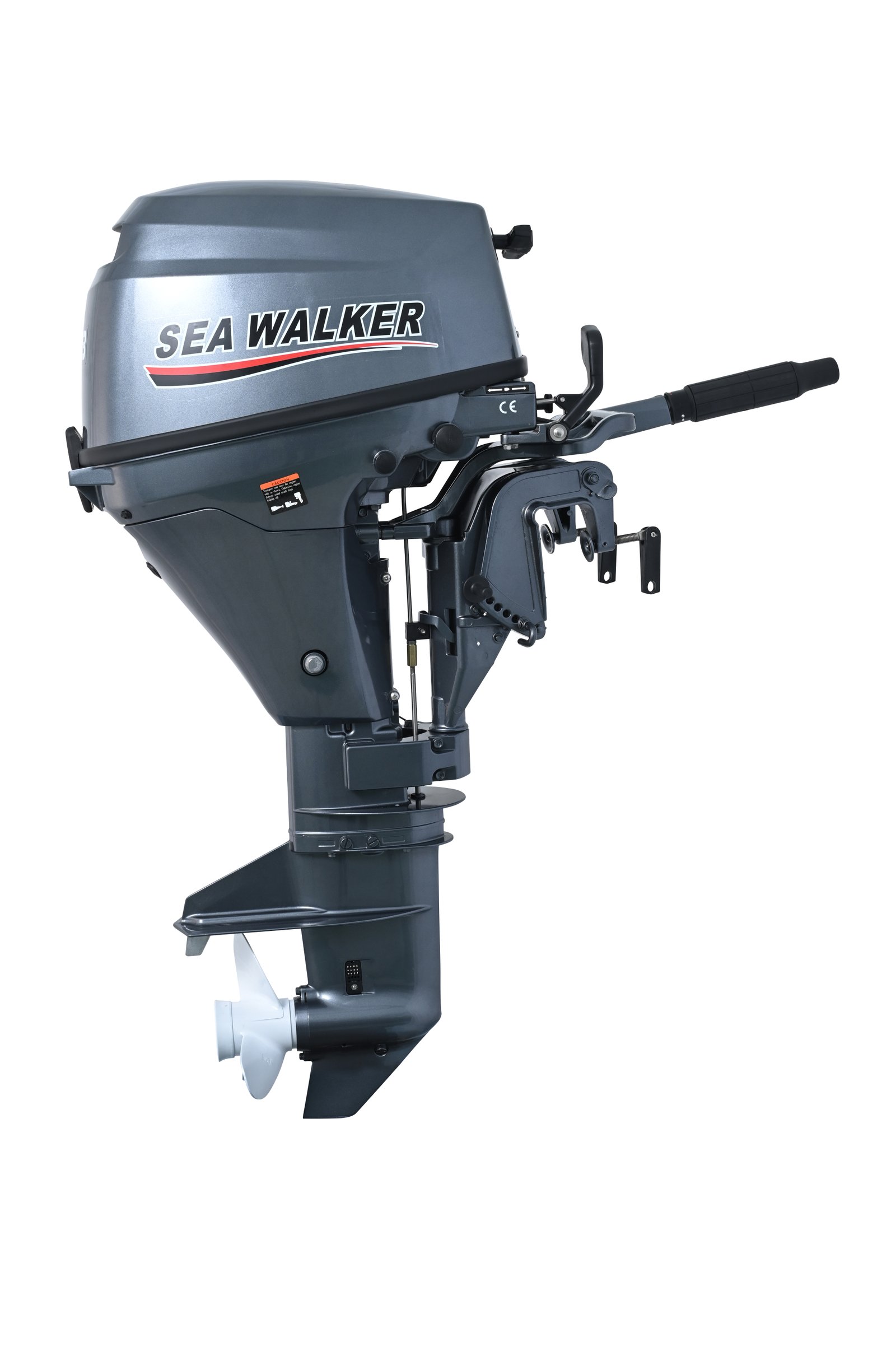

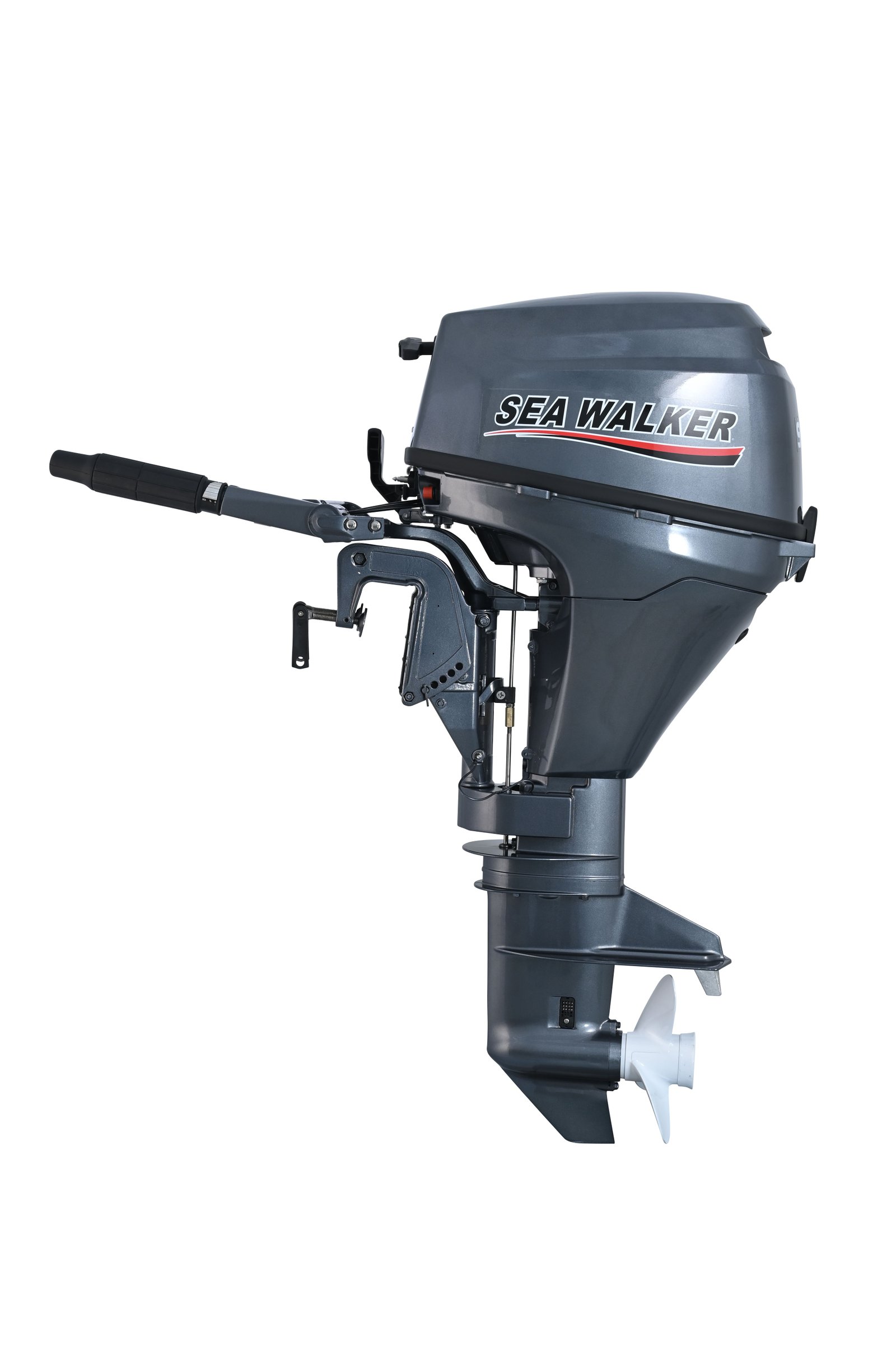

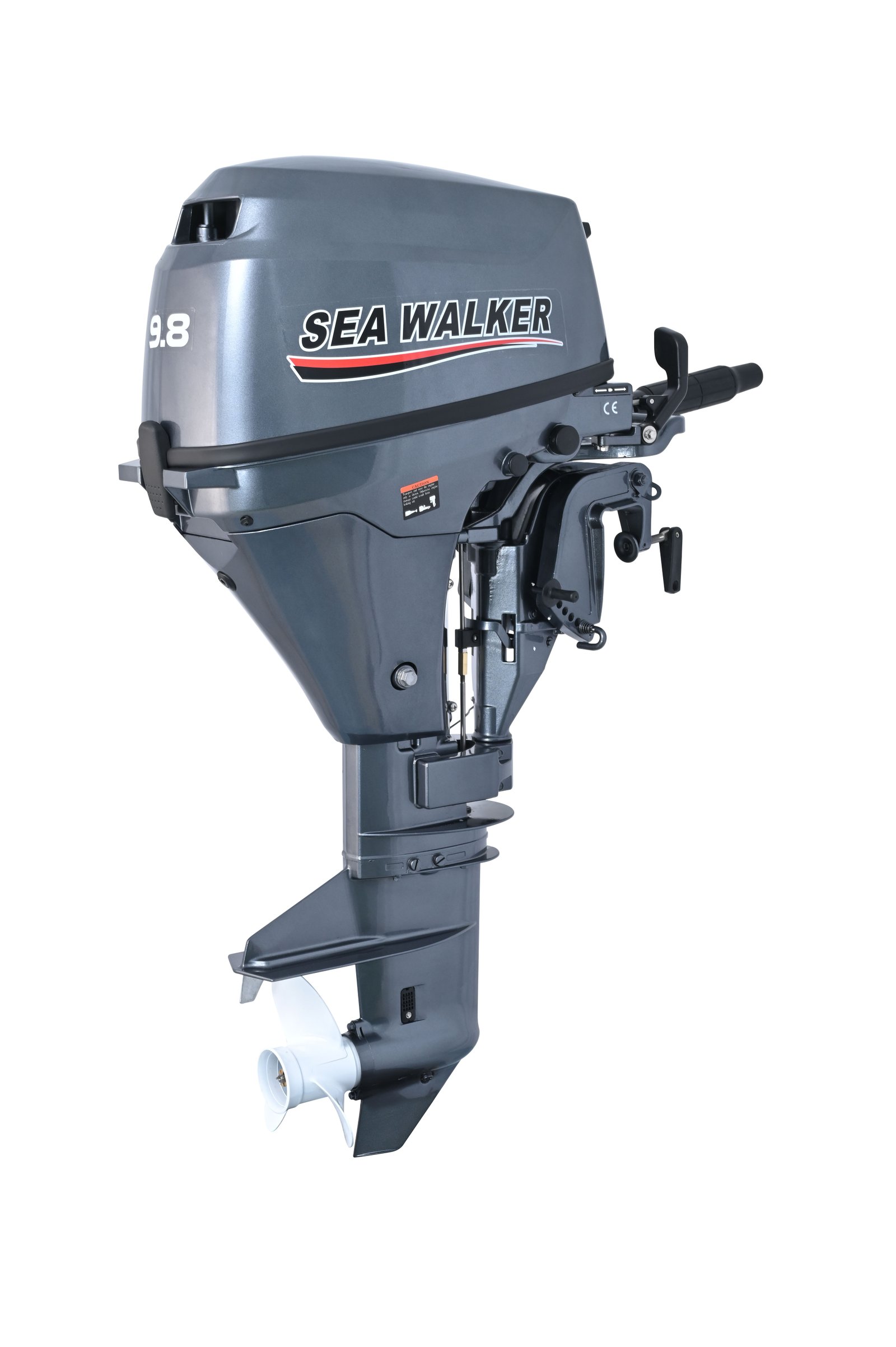

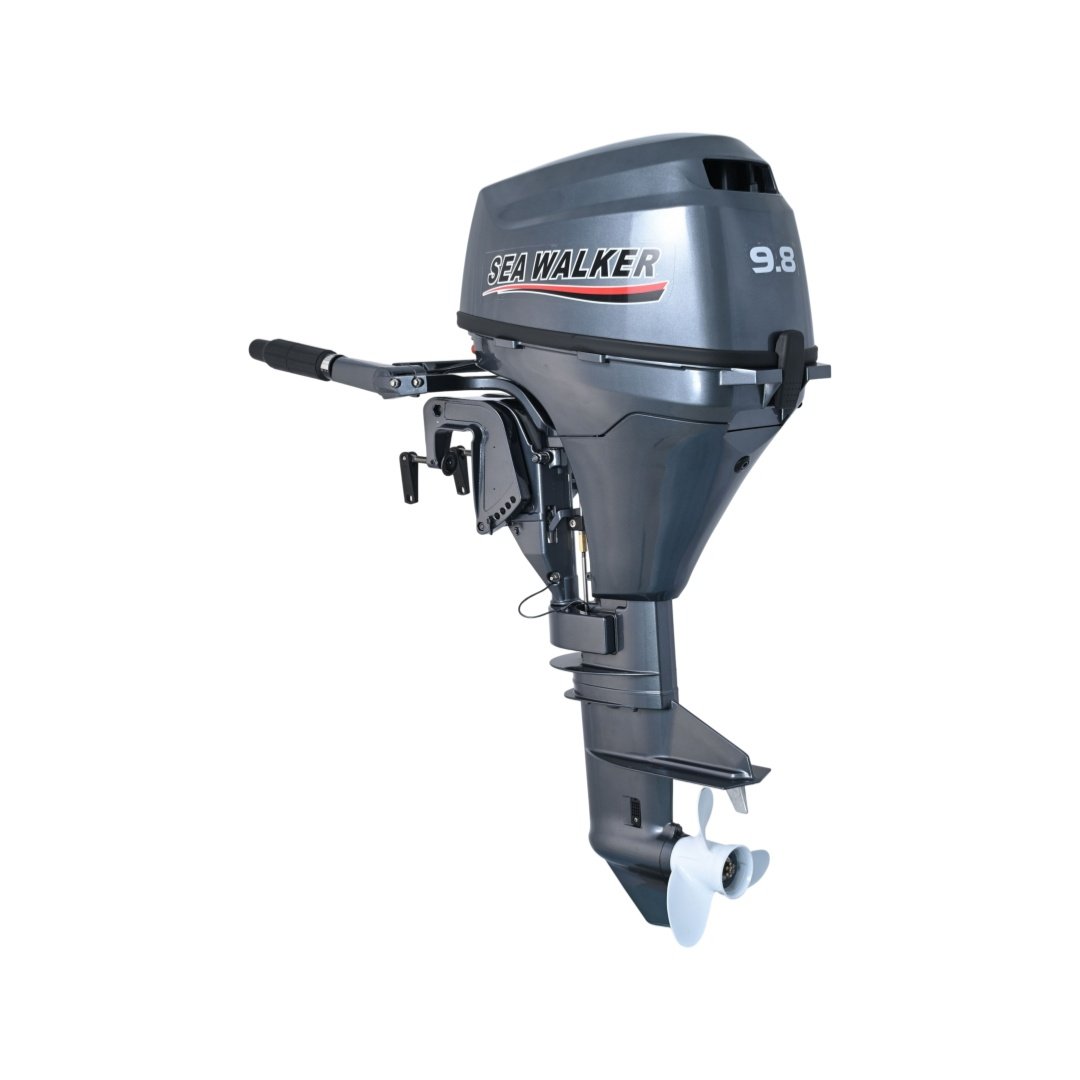

Ultra-smooth twin-cylinder power in a compact size, low emissions, perfect for tenders and small RIBs.
9.8HP 4 Stroke Outboard Engine
Twin Cylinder F9.8 Motor
Yamaha Compatible Outboard
Inflatable Boat Motor 9.8HP
